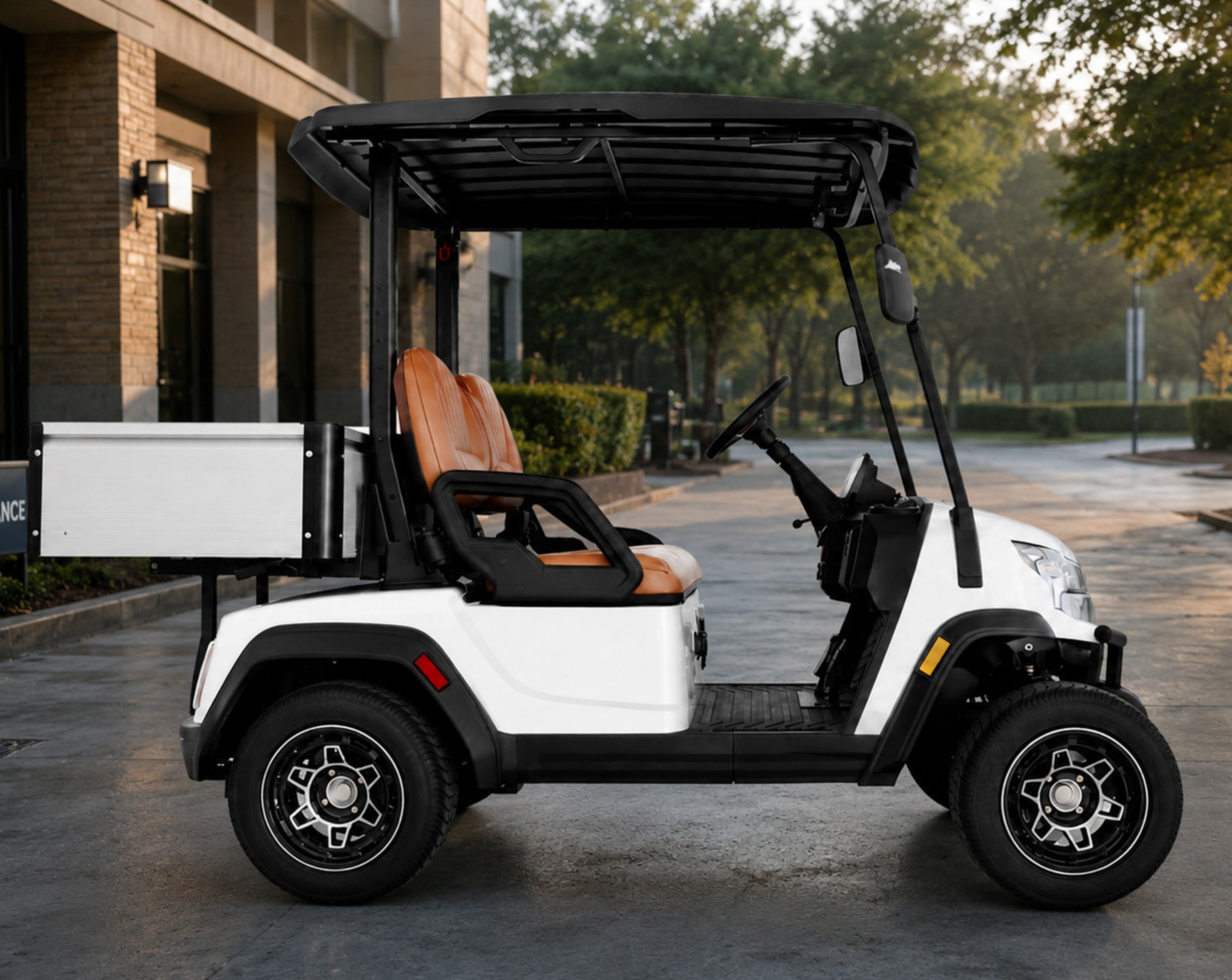

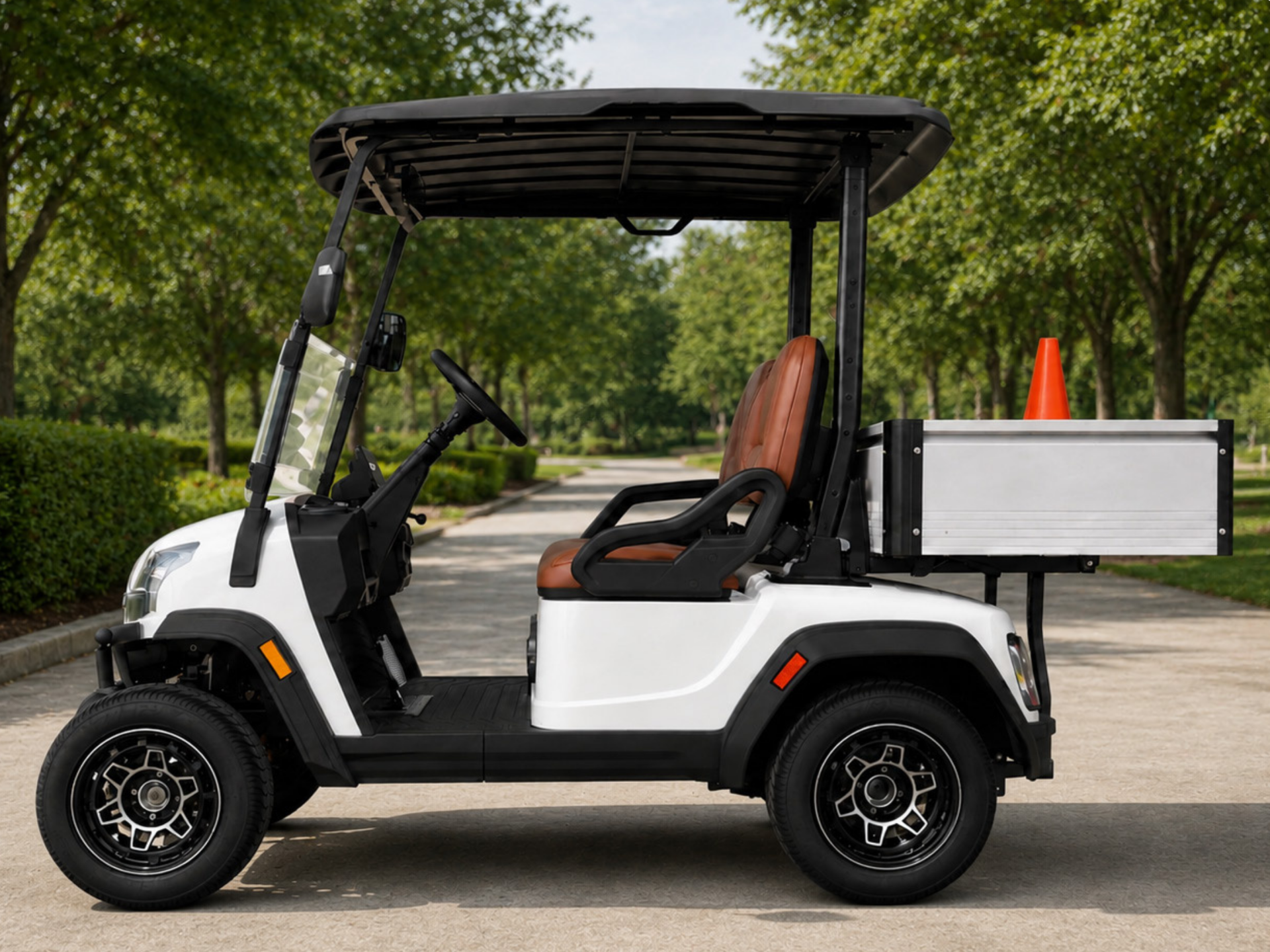

2026 ICON X i20sX Commercial Golf Cart w/Hydraulic Tilt Dump Bed

Power:

• Motor Type: 48V/5kW
• Controller: 450A
• Speed: Standard Speed 19 mph (programmable up to 25 mph)
• Battery: 51V/160Ah Lithium

Dimensions:

• Total Vehicle Capacity: 2 Passenger
• Overall Dimensions LxWxH: 110.6”x 47.2”x75.3”
• Ground Clearance: 4.33”
• Curb Weight: 1,091 lbs
• Payload: 2 Passenger + 350 lbs in bed
• Tow Capacity: 500 lbs
• Turning Radius: 11.5’
• Rear Open Cargo Box: 31.5in x 44.5in x 12.2in (LxWxH)

Body:

• Body: Injection Molded PP
• Chassis: E-Coated & Powder Coated Steel Frame
• Canopy: Black Roof
• Seats: Brown Stamped Seats

Electrical & Body Systems

• Instrument Cluster: 7” Display Screen with Backup Camera & Speedometer
• Front Lights: LED combination lights (position, turn, high/low beam, DOT certified)
• Rear Lights: LED combination lights (position, brake, turn, reverse lights, DOT certified,) License Plate Light, Pre-wired for strobe light install
• Switches: Indicator Lights on with Key (Pre-wired switches)
• Utility Bed: Hydraulic Tilt
• USB Power Source: Dual USB Interfaces
• Mirrors: Side Mirrors with Dual Sided Turn Signals, Rearview Mirror
• Seatbelts: 2-Point Restraints
• Brakes: 4-Wheel Premium Hydraulic Disc Brakes
• Park Brake: Electronic Motor Brake
• Gear Selection: Forward / Neutral / Reverse
• Windshield: Folding Windshield Standard

Steering & Suspension

• Steering Gear: Rack and Pinion
• Steering Column: Adjustable Tilt
• Front Suspension: Double Wishbone Independent Suspension
• Rear Suspension: Longitudinal Leaf Spring and Telescopic Shock Absorber
• Tires: 20×9-12 (20” Diameter, 9” Width)
• Wheels: 12×7 Aluminum Wheels, ET: -15
• Drivetrain: 14:1 High Speed Rear Axle

LSV AVAILABLE ADD $895 FOR LSV OPTIONS AND VIN. PLUS TAG, REGISTRATION, TITLE & TAX
